Division 02 • Sanitary, Rainwater & Municipal Waste

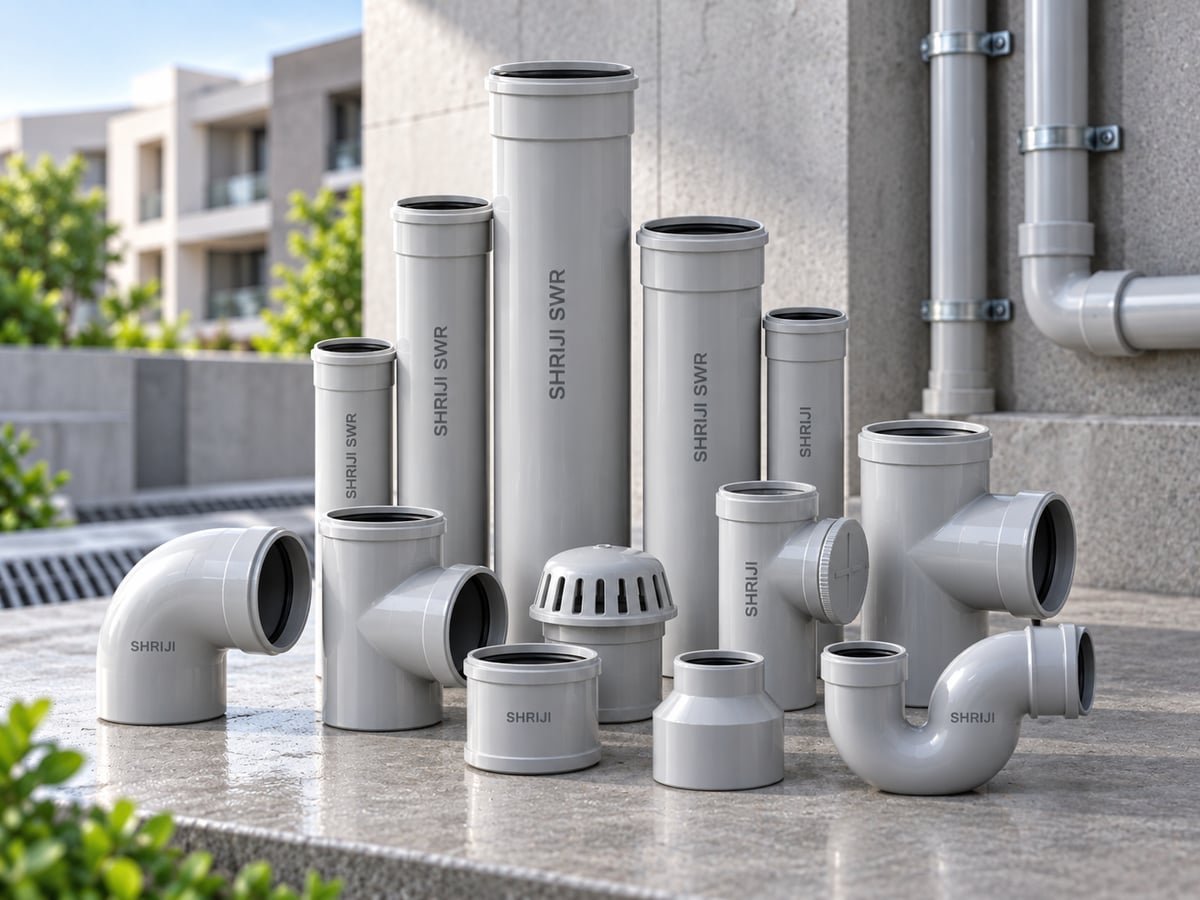

Drainage & Sewerage Systems

Advanced SWR soil, waste, and rainwater management systems, underground non-pressure drainage (UGD), and double-wall corrugated (DWC) sewerage networks engineered for smooth flow and permanent leak prevention.

Explore Products Inside Download SWR Guide (PDF)Request Quote

Ring-Fit & Selfit JointingHigh-grade EPDM rubber gaskets eliminate leak risks

Mirror-Smooth BorePrevents sludge build-up, clogs, and foul odor entrapment

High Ring StiffnessEngineered for heavy underground soil and traffic loads

100% Corrosion ProofResistant to domestic detergents and industrial sewage

Sanitary & Stormwater Engineering

Drainage & Sewerage Product Families

Reliable, maintenance-free flow systems designed for multi-story residential towers, commercial plazas, and city municipal networks.

Ref: IS 13592

SWR Soil, Waste & Rainwater Pipes

Get Range Quote

SHRIJI SWR pipes are manufactured in Type A (rainwater and ventilation discharge) and Type B (soil and waste discharge). Available with push-fit rubber ring sockets (Ring-Fit) for thermal expansion accommodation and solvent socket (Selfit) options.

Key Engineering Advantages:

✓ Bacteria & Rodent Resistant: Smooth internal wall offers no hold for rodent gnawing or bacterial accumulation.
✓ Thermal Expansion Absorption: Integrated rubber ring groove accommodates seasonal pipe length variation without stress.
✓ UV Stabilized: Retains structural integrity in external vertical pipe duct runs exposed to intense solar radiation.

Sizes: 75mm, 90mm, 110mm, 160mmTypes: Type A (Thin Wall) & Type B (Thick Wall)Jointing: Ring-Fit (Rubber Gasket) / Selfit (Solvent)

Ref: IS 14735

SWR Precision Moulded Fittings & Traps

Get Range Quote

A comprehensive ecosystem of precision injection-moulded fittings engineered for hydraulic optimization. Features inspection access door tees, bends, multi-floor reducing tees, and aeration vent cowls.

Key Engineering Advantages:

✓ Leak-Proof Inspection Doors: Threaded inspection caps allow quick rodding and maintenance without dismantling pipe stacks.
✓ Radius Flow Sweeps: Smooth internal radius bends minimize turbulence and splash clogs.
✓ High Impact Toughness: Will not crack during transit or rough on-site mechanical assembly.

Available Fittings: Door Bends, Plain Bends, Door Tees, Plain TeesReducers, Vent Cowls, Shoe Bends, Nahani Traps, P-TrapsSizes: 75mm to 160mm

Ref: IS 15328 / IS 14333

Underground Drainage (UGD) & HDPE Sewerage Pipes

Get Range Quote

Specifically designed for buried non-pressure underground sewerage and stormwater lines. High ring stiffness enables these pipes to withstand dynamic traffic wheel loads, soil overburden, and ground settlement without ovalization.

Key Engineering Advantages:

✓ High Ring Stiffness: Certified in SN 4 and SN 8 stiffness classes for shallow or deep trench installations.
✓ Root Penetration Proof: Precision elastomeric seal prevents tree root ingress and subsequent line blockages.
✓ Complete Chemical Inertness: Unaffected by hydrogen sulfide gas (H2S) generation and acidic industrial effluents.

Sizes: 110mm, 160mm, 200mm, 250mm, 315mmStiffness Classes: SN 2, SN 4, SN 8Jointing: Integrated Elastomeric Rubber Ring Sockets

Ref: IS 16098 (Part 2)

DWC Double-Wall Corrugated Sewerage Pipes

Get Range Quote

Double-wall structured piping with a corrugated exterior for exceptional mechanical strength and a mirror-smooth interior for rapid gravity waste flow. The modern, cost-effective replacement for traditional concrete and clay sewer lines.

Key Engineering Advantages:

✓ Lightweight & Easy Handling: 90% lighter than RCC pipes; requires no heavy cranes for trench placement.
✓ Superior Deflection Endurance: Absorbs ground tremors and vehicular vibrations without joint rupture.
✓ Zero Infiltration / Exfiltration: Protects underground water tables from environmental contamination.

Diameters: 75mm to 800mmStiffness: SN 4 & SN 8Standard Length: 6 Metre Straight Runs

Dimensional & Technical Specifications

Drainage Standards Comparison

Key physical properties and reference benchmarks across drainage systems.

System Category	Reference Standard	Size Range	Wall Structure	Joint Type	Primary Application
SWR Pipes (Type A)	IS 13592	75mm to 160mm	Solid Wall	Ring-Fit / Selfit	Rainwater & Vent Stacks
SWR Pipes (Type B)	IS 13592	75mm to 160mm	Solid Heavy Wall	Ring-Fit / Selfit	Soil & Waste Sanitary Stacks
UGD Drainage	IS 15328	110mm to 315mm	Solid Wall SN 4 / SN 8	Elastomeric Ring	Underground Gravity Sewerage
DWC Sewerage Pipes	IS 16098 Part 2	75mm to 800mm	Structured Corrugated	Coupler with EPDM Seal	Highway & Municipal Stormwater

Brochure & Pricing

Download the SWR Drainage & Sanitary Manual

Complete with trap depths, ring-fit assembly instructions, and stormwater gutter flow tables.

Download SWR PDF (9 MB)Request Drainage Quotation
